Data collection for the TI-84 Plus and TI-84 Plus CE graphing calculators*

Vernier LabQuest® sensors

Plug-and-play sensors that encourage students to get more hands-on with exploring real-world phenomena. Available for the TI-84 Plus series of graphing calculators.

Vernier EasyLink® interface

Explore math and science concepts such as light, force, pressure, and more. The EasyLink adapter is a single-channel interface that connects more than 60 standard Vernier sensors to TI graphing calculators.

Get EasyLink

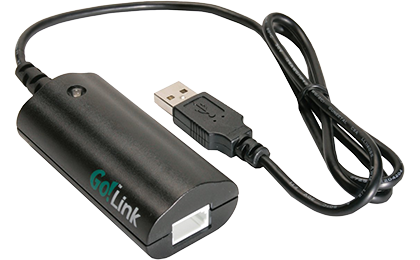

Vernier Go! Link® USB sensor interface

Go! Link is a single-channel interface that connects most Vernier sensors directly to a computer via a USB port for a quick and affordable way to get started with data collection.

Get Go! Link

Vernier EasyTemp® sensor

The general-purpose temperature sensor that plugs directly to TI graphing calculators to start measuring hot and cold information in seconds.

Get EasyTemp
LabQuest sensors EasyLink
interface 		Go! Link
sensor
25-g Accelerometer ✓ ✓
3-Axis Accelerometer 1 ✓ ✓
30-Volt Voltage Probe ✓ ✓
Ammonium Ion-Selective Electrode ✓ ✓
Anemometer ✓ ✓
Barometer ✓ ✓
Calcium Ion-Selective Electrode ✓ ✓
Charge Sensor ✓ ✓
Chloride Ion-Selective Electrode ✓ ✓
C02 Gas Sensor ✓ ✓
Colorimeter 2 ✓ ✓
Conductivity Probe ✓ ✓
Constant Current System ✓ ✓
Current Probe ✓ ✓
Differential Voltage Probe ✓ ✓
Dissolved Oxygen Probe ✓ ✓
Dual-Range Force Sensor 3 ✓ ✓
EKG Sensor 5 ✓ ✓
Electrode Amplifier 4 ✓ ✓
Exercise Heart Rate Monitor ✓ ✓
Extra Long Temperature Probe ✓ ✓
Flow Rate Sensor ✓ ✓
Force Plate ✓ ✓
Gas Pressure Sensor ✓ ✓
Go Wireless® Exercise Heart Rate 6 ✓ ✓
Go Wireless® Heart Rate 6 ✓ ✓
Goniometer ✓ ✓
Hand Dynamometer ✓ ✓
Hand-Grip Heart Rate Monitor ✓ ✓
High Current Sensor ✓ ✓
Instrumentation Amplifier ✓ ✓
Light Sensor ✓ ✓
Low-g Accelerometer ✓ ✓
Magnetic Field Sensor ✓ ✓
Melt Station ✓ ✓
Nitrate Ion-Selective Electrode ✓ ✓
O2 Gas Sensor ✓ ✓
ORP Sensor ✓ ✓
PAR Sensor ✓ ✓
pH Sensor ✓ ✓
Platinum-Cell Conductivity Probe7 ✓ ✓
Potassium Ion-Selective Electrode ✓ ✓
Power Amplifier7 ✓ ✓
Pressure Sensor 400 ✓ ✓
Pyranometer ✓ ✓
Relative Humidity Sensor ✓ ✓
Respiration Monitor Belt 8 ✓ ✓
Salinity Sensor ✓ ✓
Soil Moisture Sensor ✓ ✓
Sound Level Sensor ✓ ✓
Spirometer 9 ✓ ✓
Stainless Steel Temperature Probe ✓ ✓
Surface Temperature Sensor ✓ ✓
Thermocouple10 ✓ ✓
Tris-Compatible Flat pH Sensor ✓ ✓
Turbidity Sensor ✓ ✓
UVA Sensor ✓ ✓
UVB Sensor ✓ ✓
Vernier Energy Sensor11 ✓ ✓
Vernier Structures & Materials Tester12 ✓ ✓
Voltage Probe ✓ ✓
Wide-Range Temperature Probe ✓ ✓

COMPATIBILITY NOTES:
1. This interface can only collect acceleration data from one axis.
2. This sensor and interface combination can be problematic when measuring at 565 nm.
3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
4. Requires a BNC electrode
5. This software cannot apply digital filters to EKG data.
6. Requires a Heart Rate Receiver to connect to an interface
7. Software does not support the Data Tagging feature that is typically used with this sensor.
8. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
9. Requires a Gas Pressure Sensor.
10. Software does not support baseline adjustment.
11. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
12. This interface/software combination can only collect force data; displacement measurements are not supported.

Vernier EasyLink, EasyTemp, Go! Link, and LabQuest are registered trademarks of Vernier Science Education™.

*The TI-84 Evo may be compatible with LabQuest sensors; however, these sensors have not been tested and may only function partially or not at all.
