D

dbd()	Catalog >
dbd(date1,date2) ⇒ value Returns the number of days between date1 and date2 using the actual-day-count method. date1 and date2 can be numbers or lists of numbers within the range of the dates on the standard calendar. If both date1 and date2 are lists, they must be the same length. date1 and date2 must be between the years 1950 through 2049. You can enter the dates in either of two formats. The decimal placement differentiates between the date formats. MM.DDYY (format used commonly in the United States) DDMM.YY (format use commonly in Europe)

dbd()

Catalog >

dbd(date1,date2) ⇒ value

Returns the number of days between date1 and date2 using the actual-day-count method.

date1 and date2 can be numbers or lists of numbers within the range of the dates on the standard calendar. If both date1 and date2 are lists, they must be the same length.

date1 and date2 must be between the years 1950 through 2049.

You can enter the dates in either of two formats. The decimal placement differentiates between the date formats.

MM.DDYY (format used commonly in the United States)
DDMM.YY (format use commonly in Europe)

►DD	Catalog >
Expr1 ►DD ⇒ valueList1 ►DD ⇒ listMatrix1 ►DD ⇒ matrix Note: You can insert this operator from the computer keyboard by typing @>DD. Returns the decimal equivalent of the argument expressed in degrees. The argument is a number, list, or matrix that is interpreted by the Angle mode setting in gradians, radians or degrees.	In Degree angle mode: In Gradian angle mode: In Radian angle mode:

►DD

Catalog >

Expr1 ►DD ⇒ valueList1
►DD ⇒ listMatrix1
►DD ⇒ matrix

Note: You can insert this operator from the computer keyboard by typing @>DD.

Returns the decimal equivalent of the argument expressed in degrees. The argument is a number, list, or matrix that is interpreted by the Angle mode setting in gradians, radians or degrees.

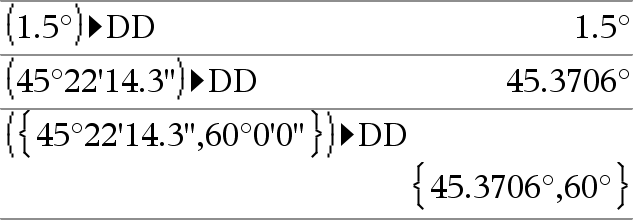

In Degree angle mode:

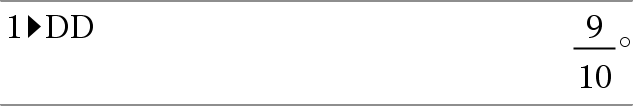

In Gradian angle mode:

In Radian angle mode:

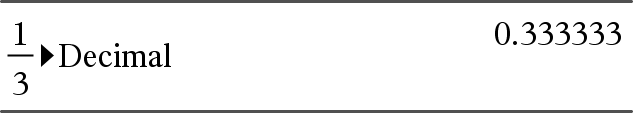

►Decimal	Catalog >
Number1 ►Decimal ⇒ value List1 ►Decimal ⇒ value Matrix1 ►Decimal ⇒ value Note: You can insert this operator from the computer keyboard by typing @>Decimal. Displays the argument in decimal form. This operator can be used only at the end of the entry line.

►Decimal

Catalog >

Number1 ►Decimal ⇒ value

List1 ►Decimal ⇒ value

Matrix1 ►Decimal ⇒ value

Note: You can insert this operator from the computer keyboard by typing @>Decimal.

Displays the argument in decimal form. This operator can be used only at the end of the entry line.

Define	Catalog >
Define Var = Expression Define Function(Param1, Param2, ...) = Expression Defines the variable Var or the user-defined function Function. Parameters, such as Param1, provide placeholders for passing arguments to the function. When calling a user-defined function, you must supply arguments (for example, values or variables) that correspond to the parameters. When called, the function evaluates Expression using the supplied arguments. Var and Function cannot be the name of a system variable or built-in function or command. Note: This form of Define is equivalent to executing the expression: expression → Function(Param1,Param2).
Define Function(Param1, Param2, ...) = Func Block EndFunc Define Program(Param1, Param2, ...) = Prgm Block EndPrgm In this form, the user-defined function or program can execute a block of multiple statements. Block can be either a single statement or a series of statements on separate lines. Block also can include expressions and instructions (such as If, Then, Else, and For). Note for entering the example: For instructions on entering multi-line program and function definitions, refer to the Calculator section of your product guidebook. Note: See also Define LibPriv, here, and Define LibPub, here.

Define

Catalog >

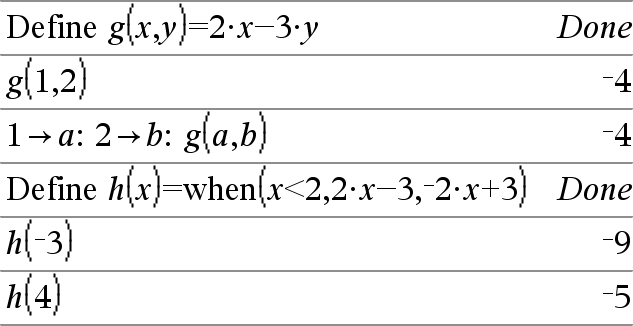

Define Var = Expression
Define Function(Param1, Param2, ...) = Expression

Defines the variable Var or the user-defined function Function.

Parameters, such as Param1, provide placeholders for passing arguments to the function. When calling a user-defined function, you must supply arguments (for example, values or variables) that correspond to the parameters. When called, the function evaluates Expression using the supplied arguments.

Var and Function cannot be the name of a system variable or built-in function or command.

Note: This form of Define is equivalent to executing the expression: expression → Function(Param1,Param2).

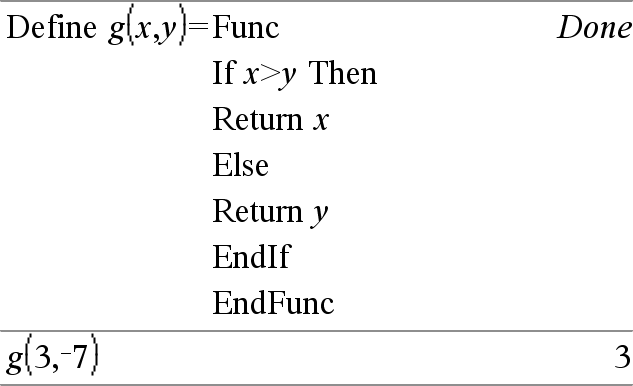

Define Function(Param1, Param2, ...) = Func
Block
EndFunc

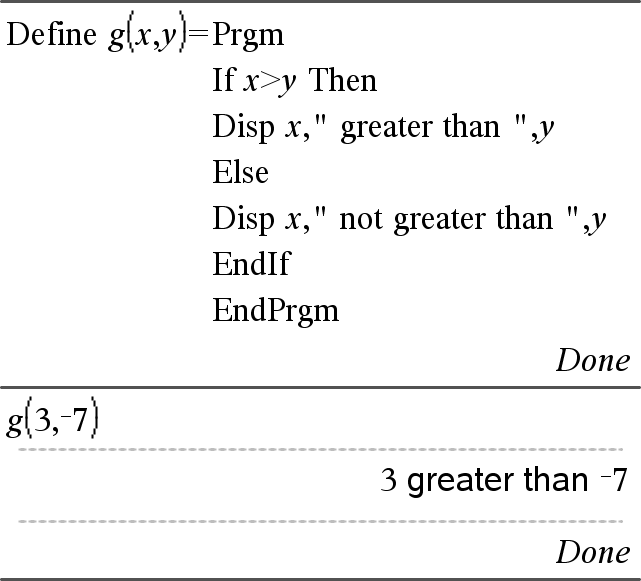

Define Program(Param1, Param2, ...) = Prgm
Block
EndPrgm

In this form, the user-defined function or program can execute a block of multiple statements.

Block can be either a single statement or a series of statements on separate lines. Block also can include expressions and instructions (such as If, Then, Else, and For).

Note for entering the example: For instructions on entering multi-line program and function definitions, refer to the Calculator section of your product guidebook.

Note: See also Define LibPriv, here, and Define LibPub, here.

Define LibPriv	Catalog >
Define LibPriv Var = Expression Define LibPriv Function(Param1, Param2, ...) = Expression Define LibPriv Function(Param1, Param2, ...) = Func Block EndFunc Define LibPriv Program(Param1, Param2, ...) = Prgm Block EndPrgm Operates the same as Define, except defines a private library variable, function, or program. Private functions and programs do not appear in the Catalog. Note: See also Define, here, and Define LibPub, here.

Define LibPriv

Catalog >

Define LibPriv Var = Expression
Define LibPriv Function(Param1, Param2, ...) = Expression

Define LibPriv Function(Param1, Param2, ...) = Func
Block
EndFunc

Define LibPriv Program(Param1, Param2, ...) = Prgm
Block
EndPrgm

Operates the same as Define, except defines a private library variable, function, or program. Private functions and programs do not appear in the Catalog.

Note: See also Define, here, and Define LibPub, here.

Define LibPub	Catalog >
Define LibPub Var = Expression Define LibPub Function(Param1, Param2, ...) = Expression Define LibPub Function(Param1, Param2, ...) = Func Block EndFunc Define LibPub Program(Param1, Param2, ...) = Prgm Block EndPrgm Operates the same as Define, except defines a public library variable, function, or program. Public functions and programs appear in the Catalog after the library has been saved and refreshed. Note: See also Define, here, and Define LibPriv, here.

Define LibPub

Catalog >

Define LibPub Var = Expression
Define LibPub Function(Param1, Param2, ...) = Expression

Define LibPub Function(Param1, Param2, ...) = Func
Block
EndFunc

Define LibPub Program(Param1, Param2, ...) = Prgm
Block
EndPrgm

Operates the same as Define, except defines a public library variable, function, or program. Public functions and programs appear in the Catalog after the library has been saved and refreshed.

Note: See also Define, here, and Define LibPriv, here.

deltaList()	See ΔList(), here.

DelVar	Catalog >
DelVar Var1[, Var2] [, Var3] ... DelVar Var. Deletes the specified variable or variable group from memory. If one or more of the variables are locked, this command displays an error message and deletes only the unlocked variables. See unLock, here.
DelVar Var. deletes all members of the Var. variable group (such as the statistics stat.nn results or variables created using the LibShortcut() function). The dot (.) in this form of the DelVar command limits it to deleting a variable group; the simple variable Var is not affected.

DelVar

Catalog >

DelVar Var1[, Var2] [, Var3] ...

DelVar Var.

Deletes the specified variable or variable group from memory.

If one or more of the variables are locked, this command displays an error message and deletes only the unlocked variables. See unLock, here.

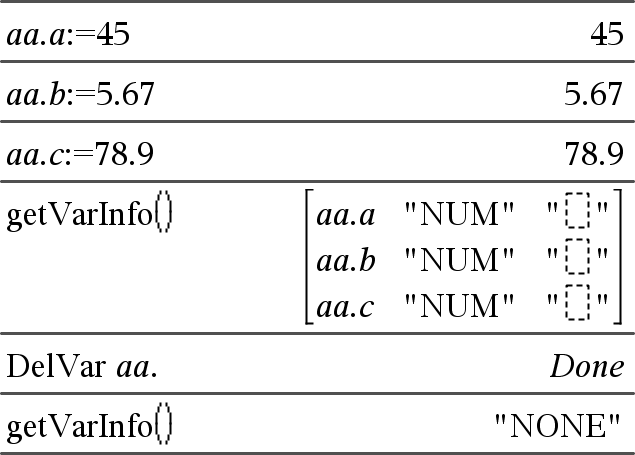

DelVar Var. deletes all members of the Var. variable group (such as the statistics stat.nn results or variables created using the LibShortcut() function). The dot (.) in this form of the DelVar command limits it to deleting a variable group; the simple variable Var is not affected.

delVoid()	Catalog >
delVoid(List1) ⇒ list Returns a list that has the contents of List1 with all empty (void) elements removed. For more information on empty elements, see here.

delVoid()

Catalog >

delVoid(List1) ⇒ list

Returns a list that has the contents of List1 with all empty (void) elements removed.

For more information on empty elements, see here.

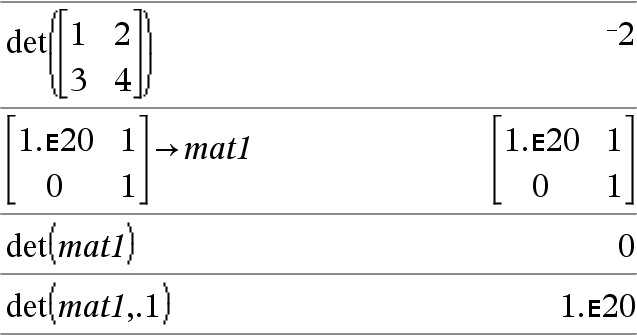

det()

Catalog >

det(squareMatrix[, Tolerance]) ⇒ expression

Returns the determinant of squareMatrix.

Optionally, any matrix element is treated as zero if its absolute value is less than Tolerance. This tolerance is used only if the matrix has floating-point entries and does not contain any symbolic variables that have not been assigned a value. Otherwise, Tolerance is ignored.

•

If you use /· or set the Auto or Approximate mode to Approximate, computations are done using floating-point arithmetic.

•

If Tolerance is omitted or not used, the default tolerance is calculated as:
5E-14 •max(dim(squareMatrix))•rowNorm(squareMatrix)

diag()	Catalog >
diag(List) ⇒ matrix diag(rowMatrix) ⇒ matrix diag(columnMatrix) ⇒ matrix Returns a matrix with the values in the argument list or matrix in its main diagonal.
diag(squareMatrix) ⇒ rowMatrix Returns a row matrix containing the elements from the main diagonal of squareMatrix. squareMatrix must be square.

diag()

Catalog >

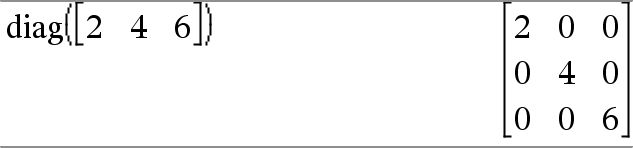

diag(List) ⇒ matrix
diag(rowMatrix) ⇒ matrix
diag(columnMatrix) ⇒ matrix

Returns a matrix with the values in the argument list or matrix in its main diagonal.

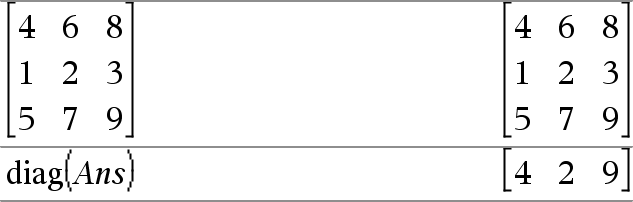

diag(squareMatrix) ⇒ rowMatrix

Returns a row matrix containing the elements from the main diagonal of squareMatrix.

squareMatrix must be square.

dim()	Catalog >
dim(List) ⇒ integer Returns the dimension of List.

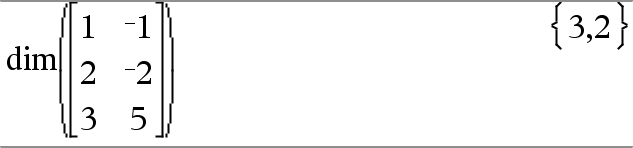

dim(Matrix) ⇒ list Returns the dimensions of matrix as a two-element list {rows, columns}.

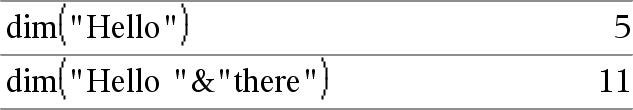

dim(String) ⇒ integer Returns the number of characters contained in character string String.

Disp	Catalog >
Disp exprOrString1 [, exprOrString2] ... Displays the arguments in the Calculator history. The arguments are displayed in succession, with thin spaces as separators. Useful mainly in programs and functions to ensure the display of intermediate calculations. Note for entering the example: For instructions on entering multi-line program and function definitions, refer to the Calculator section of your product guidebook.

Disp

Catalog >

Disp exprOrString1 [, exprOrString2] ...

Displays the arguments in the Calculator history. The arguments are displayed in succession, with thin spaces as separators.

Useful mainly in programs and functions to ensure the display of intermediate calculations.

Note for entering the example: For instructions on entering multi-line program and function definitions, refer to the Calculator section of your product guidebook.

DispAt

Catalog >

DispAt int,expr1 [,expr2 ...] ...

DispAt allows you to specify the line where the specified expression or string will be displayed on the screen.

The line number can be specified as an expression.

Please note that the line number is not for the entire screen but for the area immediately following the command/program.

This command allows dashboard-like output from programs where the value of an expression or from a sensor reading is updated on the same line.

DispAt and Disp can be used within the same program.

Note: The maximum number is set to 8 since that matches a screen-full of lines on the handheld screen - as long as the lines don't have 2D math expressions. The exact number of lines depends on the content of the displayed information.

Example

Illustrative examples:

Define z()=

Prgm

For n,1,3

DispAt 1,"N: ",n

Disp "Hello"

EndFor

EndPrgm

Output

z()

Iteration 1:

Line 1: N:1

Line 2: Hello

Iteration 2:

Line 1: N:2

Line 2: Hello

Line 3: Hello

Iteration 3:

Line 1: N:3

Line 2: Hello

Line 3: Hello

Line 4: Hello

Define z1()=

Prgm

For n,1,3

DispAt 1,"N: ",n

EndFor

For n,1,4

Disp "Hello"

EndFor

EndPrgm

z1()

Line 1: N:3

Line 2: Hello

Line 3: Hello

Line 4: Hello

Line 5: Hello

Error conditions:

Error Message	Description
DispAt line number must be between 1 and 8	Expression evaluates the line number outside the range 1-8 (inclusive)
Too few arguments	The function or command is missing one or more arguments.
No arguments	Same as current 'syntax error' dialog
Too many arguments	Limit argument. Same error as Disp.
Invalid data type	First argument must be a number.
Void: DispAt void	"Hello World" Datatype error is thrown for the void (if the callback is defined)

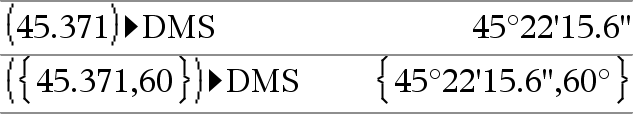

►DMS	Catalog >
Value ►DMS List ►DMS Matrix ►DMS Note: You can insert this operator from the computer keyboard by typing @>DMS. Interprets the argument as an angle and displays the equivalent DMS (DDDDDD°MM'SS.ss'') number. See °, ', '' on here for DMS (degree, minutes, seconds) format. Note: ►DMS will convert from radians to degrees when used in radian mode. If the input is followed by a degree symbol ° , no conversion will occur. You can use ►DMS only at the end of an entry line.	In Degree angle mode:

►DMS

Catalog >

Value ►DMS

List ►DMS

Matrix ►DMS

Note: You can insert this operator from the computer keyboard by typing @>DMS.

Interprets the argument as an angle and displays the equivalent DMS (DDDDDD°MM'SS.ss'') number. See °, ', '' on here for DMS (degree, minutes, seconds) format.

Note: ►DMS will convert from radians to degrees when used in radian mode. If the input is followed by a degree symbol ° , no conversion will occur. You can use ►DMS only at the end of an entry line.

In Degree angle mode:

dotP()	Catalog >
dotP(List1, List2) ⇒ expression Returns the “dot” product of two lists.
dotP(Vector1, Vector2) ⇒ expression Returns the “dot” product of two vectors. Both must be row vectors, or both must be column vectors.

dotP()

Catalog >

dotP(List1, List2) ⇒ expression

Returns the “dot” product of two lists.

dotP(Vector1, Vector2) ⇒ expression

Returns the “dot” product of two vectors.

Both must be row vectors, or both must be column vectors.
