Exploring Graphs with Path Plot

Path Plot lets you animate function, parametric, and polar equation plots in real time to analyze how they are plotted and not just the final plot.

Changing the Path Plot Settings

1.

In the Graphing view, tap Tools and go to Trace > Path Plot > Path Setup.

2.

Select the settings you want to use.

-

Graph Type: Selects Function, Parametric, or Polar as the graph type.

-

Path Step: Sets the increment of the independent variable at which values are plotted.

-

Show Future Path: Toggles the display of all future points for each function past the starting or current point of the graph. You can also toggle this when viewing the graph with the Up/Down arrow keys.

-

Show Point Coordinates: Toggles the display of the coordinates for recorded trace points.

Enabling Path Plot

1.

Enter your equation(s).

2.

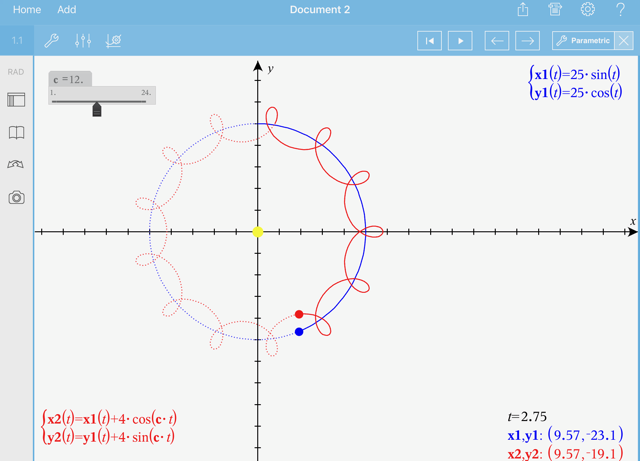

From the Trace menu, select Path Plot > Function/Parametric/Polar.

3.

Navigate through the animation by:

-

using the Play/Pause/Reset Animation icons

-

using the Left/Right arrow keys

-

entering a number to jump to that point
