Number Bases

% —

Base Conversion

% — displays the CONVR menu, which converts a real number to the equivalent in a specified base.

1:8 Hex	Converts to hexadecimal (base 16).
2:8 Bin	Converts to binary (base 2).
3:8 Dec	Converts to decimal (base 10).
4:8 Oct	Converts to octal (base 8).

Base Type

% — " displays the TYPE menu, which lets you designate the base of a number regardless of the calculator’s current number-base mode.

1:h	Designates a hexadecimal integer.
2:b	Designates a binary integer.
3:d	Designates a decimal number.
4:o	Designates an octal integer.

Examples in DEC Mode

Note: Mode can be set to DEC, BIN, OCT, or HEX. See the Mode section.

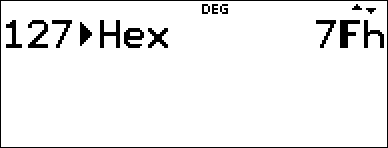

d 8 Hex	- 127 % — 1 <
h 8 Bin	- % ¬ % ¬ % — " 1 % — 2 <

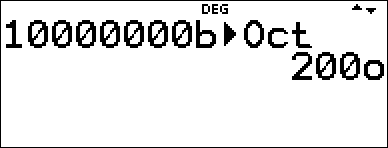

b 8 Oct	- 10000000 % — " 2 % — 4 <

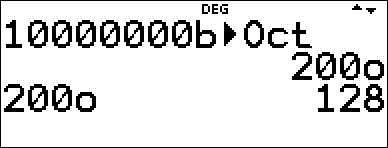

o 8 Dec	# < <

Boolean Logic

% — ! displays the LOGIC menu, which lets you perform boolean logic.

1:and	Bitwise AND of two integers
2:or	Bitwise OR of two integers
3:xor	Bitwise XOR of two integers
4:xnor	Bitwise XNOR of two integers
5:not(	Logical NOT of a number
6:2’s(	2’s complement of a number
7:nand	Bitwise NAND of two integers

Examples

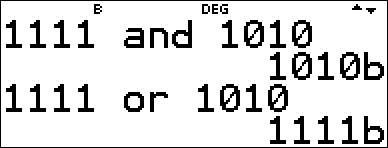

BIN mode: and, or	- q $ $ $ $ " " < 1111 % — ! 1 1010 < 1111 % — ! 2 1010 <

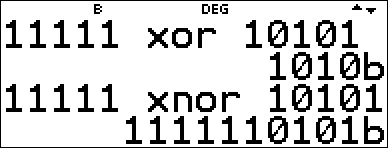

BIN mode: xor, xnor	- 11111 % — ! 3 10101 < 11111 % — ! 4 10101 <
HEX mode: not, 2’s	- q $ $ $ $ " < % — ! 6 % ¬ % ¬ ) < % — ! 5 % i ) <
DEC mode: nand	- q $ $ $ $ < 192 % — ! 7 48 <
